The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply:
- Fully compatible with ATX 3.0 and PCIe 5.0 standards

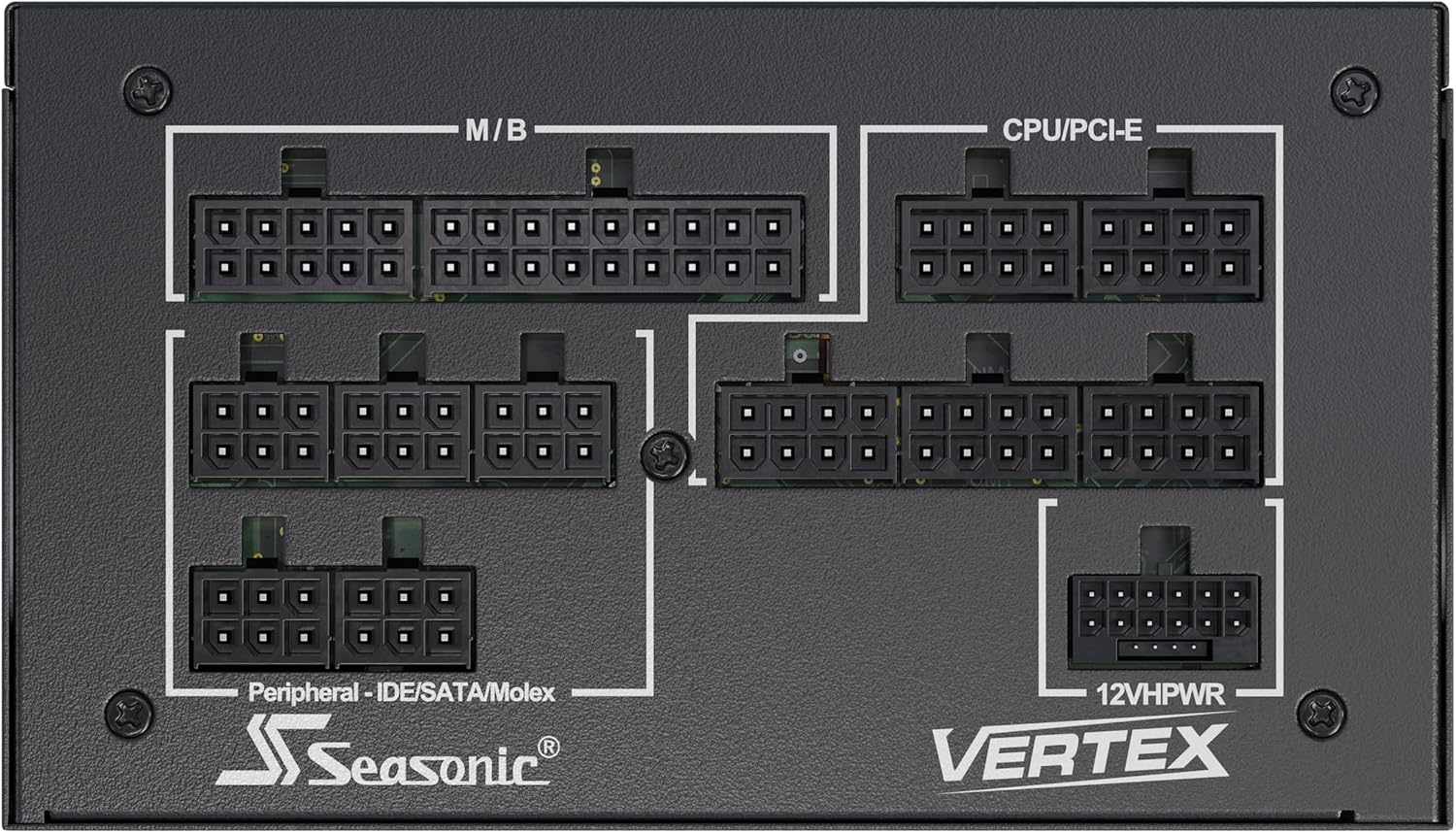

- Full modularity for the best cable management options:
- Added 12VHPWR cable to comply with the new graphic cards
- 135mm Fluid Dynamic Bearing (FDB) fan for quiet operation
- Seasonic Hybrid Silent Fan Control for optimal cooling
- Complete protection features: OPP / OVP / UVP / SCP / OCP / OTP
- 10 years warranty - our commitment to high quality

80PLUS: Gold
Cybenetics Efficiency Level: Gold (See report)
Cybenetics Noise Level: Lambda A- (See report)
Form Factor: Intel ATX 12 V
Dimensions: 160 mm (L) x 150 mm (W) x 86 mm (H)

• Fan Information
Fan Size: 135 mm
Fan Control: Digital Fan Control
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 40 °C, 15 % - 65 % RH

• Cable Information
Modularity: Fully Modular
Cable type: Flat black cables

• Electrical Features
Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan: 150,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Warranty: 10 Years
