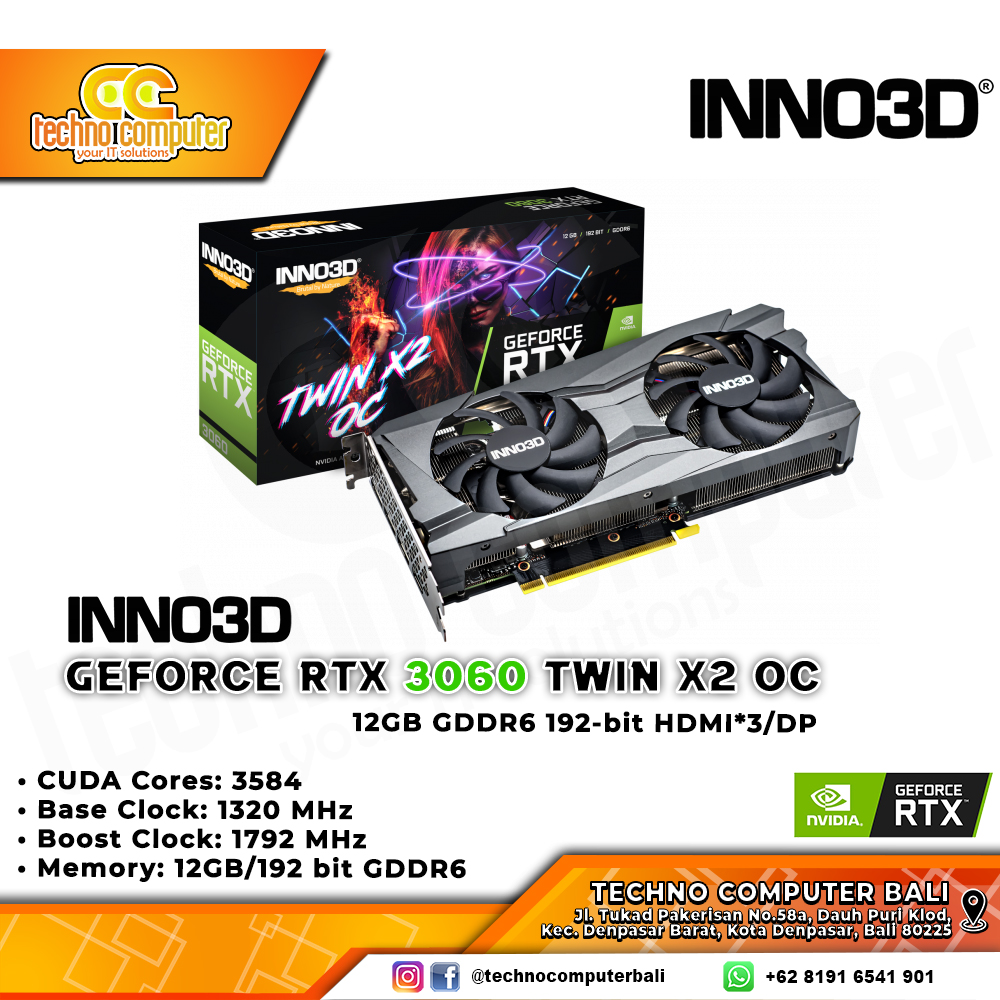

Technical Spec.
GPU Engine Specs:
CUDA Cores : 3584
Boost Clock (MHz) : 1792
Base Clock(MHz) : 1320
Thermal and Power Spec:
Minimum System Power Requirement (W) : 550
Supplementary Power Connectors : 8-pin
Memory Specs:
Memory Clock : 15Gbps
Standard Memory Config : 12GB
Memory Interface : GDDR6
Memory Interface Width : 192-bit
Memory Bandwidth (GB/sec) : 360
Feature Support:
Real-Time Ray Tracing : Yes
Ray Tracing Cores : 2nd Generation
Tensor Cores : 3rd Generation
NVIDIA Architecture : Ampere
Microsoft DirectX : 12 Ultimate
NVIDIA DLSS : Yes
PCI Express Gen 4 : Yes
NVIDIA GeForce Experience : Yes
NVIDIA Ansel : Yes
NVIDIA FreeStyle : Yes
Bus Support : PCI-E 4.0 X16
NVIDIA ShadowPlay : Yes
NVIDIA Highlights : Yes
OS Certification : Windows 10, Linux, FreeBSDx86
NVIDIA G-SYNC™-Ready : Yes
Lighting module : White LED logo (No RGB Control)
Game Ready Drivers : Yes
NVIDIA Studio Drivers : Yes
NVIDIA GPU Boost™ : Yes
Vulkan API : Yes
OpenGL : 4.6
HDMI 2.1 : Yes
DisplayPort 1.4a : Yes
NVIDIA Encoder : 7th Generation
NVIDIA Decoder : 5th Generation
Accessories:
Installation Guide : Yes
Power Guide : Yes
Graphics Card Dimensions:
Length : 240mm
Height : 120mm
Width : 2-slot
Display Support:
Multi Monitor : Yes
Maxmium Digital Resolution : 7680x4320
HDCP : 2.3
Standard Display Connectors : HDMI 2.1, 3x DisplayPort 1.4a
