Features :
• 650W 80 Plus Bronze
• High Quality Capacitors
• Compatible with ATX 3.1
• Support C6/C7 Power State
• Automatic Fan Speed Optimizing According to Temperature
• DC to DC Design
• Heavy-duty Protection: OVP/UVP/OPP/SCP/OCP/OTP

Specifications :

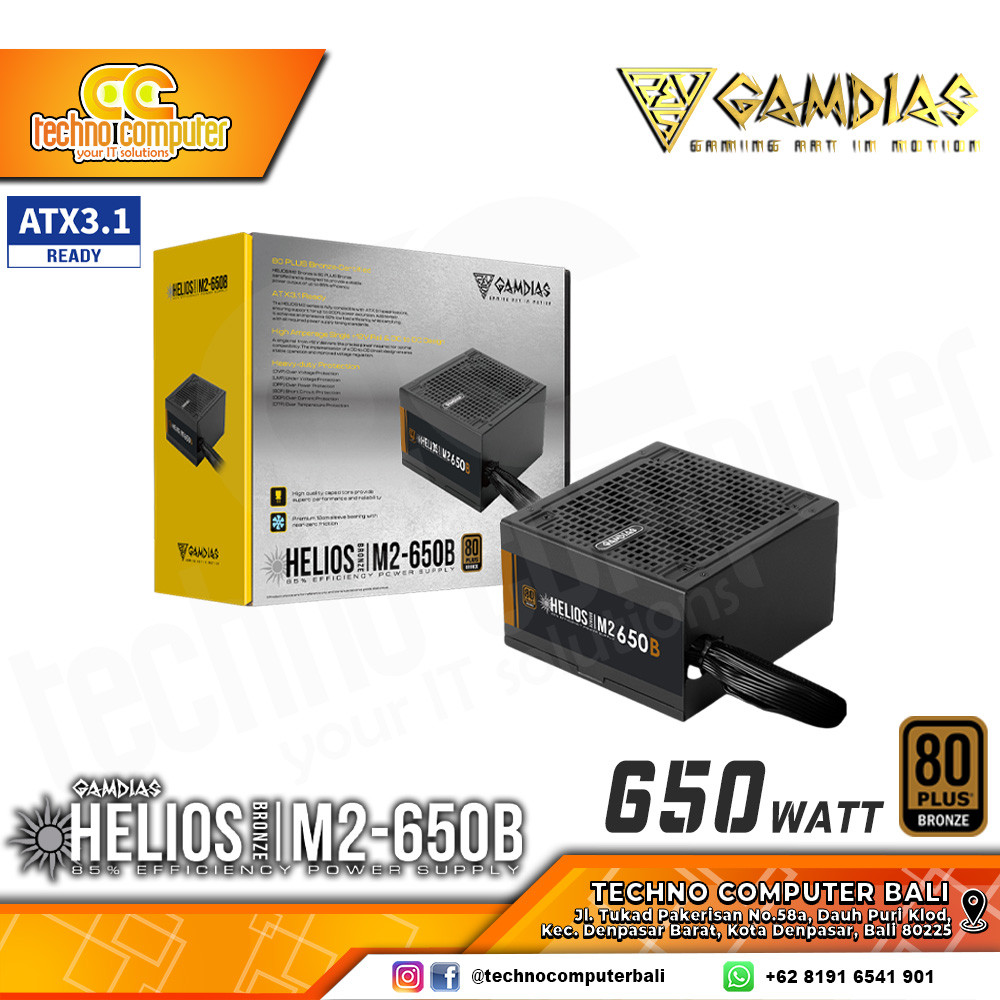

Model : HELIOS M2-650B
Type : ATX12V v3.1
Efficiency : Meet 80 PLUS Bronze efficiency
Power Factor Correction : APFC with PF value of 0.99
Support MB Sync : No
Dimension (L x W x H) : 140 x 150 x 86 mm
Support C6/C7 power state : Yes
AC Input : 100-240V~ / 10A / 50-50-60Hz
DC Output : +3.3V / +5V / +12V / -12V / +5Vsb
Max. Output Current : 22A / 22A / 54.1A / 0.3A / 3A
Max. Output Power : 120W / 650W / 3.6W / 15W
Total Power : 650W
Peak Power : 845W
Protection : OVP / UVP / OPP / SCP / OCP / OTP
Main Power : 1 (20+4 Pin)
CPU : 2 (4+4 Pin)
PCI-E : 2 (6+2 Pin)
SATA : 4 (5 Pin)
Molex : 4 (4 Pin)
Modular : Non Modular
Flat Cable : Yes
Cooling System : 120mm long-lifespan sleeve bearing
Silent Mode : No
DC to DC : Yes
Environmental Compliance : Erp Lot 6
