PRODUCT NAME

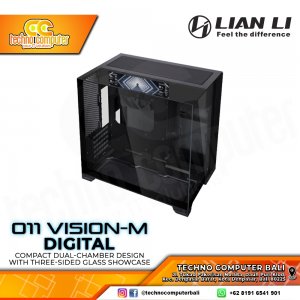

- O11 VISION-M Digital

MODEL NO.
- O11VMDX
- O11VMDW

COLOR
- BLACK
- WHITE

DIGITAL SCREEN
- Yes

LCD TYPE
- IPS LCD

SIZE
- 9.2”

REFRESH RATE
- 60 Hz

RESOLUTION
- 1920×462

SCREEN BRIGHTNESS
- 500nits

RATED VOLTAGE
- 5v

INPUT POWER
- 3.8w

DIMENSIONS
- 419.6mm x 275.1mm x 395.2mm (DxWxH)

MATERIALS
- Steel /4.0mm Tempered Glass /3.0mm Tempered Glass /Aluminum

MOTHERBOARD SUPPORT
- M-ATX, Mini-ITX,
- Back-Connect: No

EXPANSION SLOT
- 5

STORAGE
- 3.5” HDD x 1 + 2.5” SSD x 2 or 2.5” SSD x 3

GPU LENGTH CLEARANCE
- 410 mm

CPU COOLER HEIGHT CLEARANCE
- 162 mm

PSU SUPPORT
- ATX (Under 182mm)

RADIATOR SUPPORT
- Top: 360mm / 240mm
- Side: 240mm

FAN SUPPORT
- Top: 120mm x 3
- Side: 120mm x 2
- Second Chamber: 140mm x 1 (Pre-installed) + 120mm x 2
- Bottom: 120mm x 3
- Rear: 120mm x 2

INCLUDED FANS
- Side (Second Chamber): 140mm x 1

FAN CONNECTOR
- 4-Pin PWM

DUST FILTER
- Removable Bottom Dust Tray x 1

I/O Ports
- Power Button x 1
- USB 3.0 Type A x 2
- USB 3.2 Type C x 1
- Audio x 1
